Edwards Edward Dry Scroll Pump XDS35i, XDS35iE, XDS46i models are complete and offer discounted prices. If you cannot find the product you need on this page, please contact us directly
With the increasing demand for dry cleaning vacuum applications, Edwards XDS vortex pumps have become the industry standard for vortex dry pumps, proving to be a durable and clean vacuum pump solution suitable for various applications and processes.

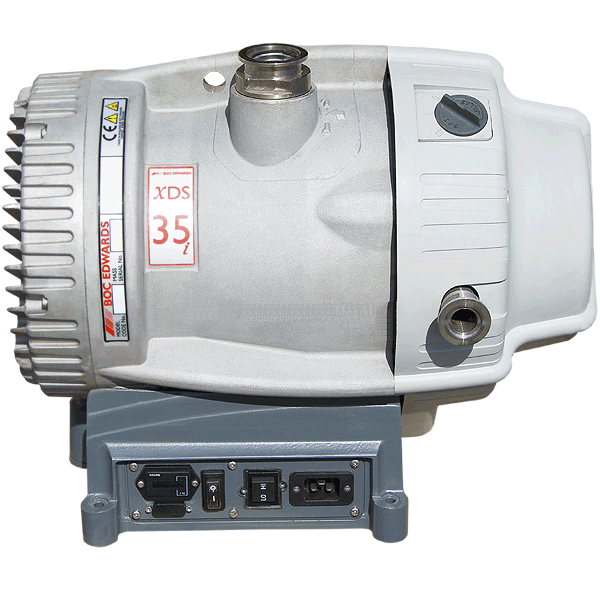

The Edwards XDS35i pump features an innovative bearing cover that isolates the vacuum environment from all forms of lubricants, creating a completely static sealed and oil-free clean vacuum environment. For applications such as rare gas recirculation and gas recovery, the Edwards XDS35iNGB optional model has removed gas ballast.
Type C is an improved version that is more suitable for the application of water vapor and certain corrosive substances. This chemically resistant version is based on the Chemraz internal valve and the outlet of stainless steel material.
Edwards XDS46i and XDS35i have many common characteristics, but the former has a peak pumping speed of 40m3h-1. The pump has been optimized for pumping speed (inlet pressure between 1 mbar and 10 mbar), making it suitable for the front stage pump of turbomolecular pumps.
The XDS35i Enhanced Edition (XDS35iE) features dual inlet and bypass valve technology, enabling it to handle applications outside the standard XDS35i pump operating range, such as preventing excessive compression of gas in vortex devices at high operating pressures and high throughput. The XDS35iE can operate without being limited by the size of the vacuum chamber or the frequency of cyclic pumping. This provides our customers with more opportunities to benefit from XDS vortex dry pump technology.
Edwards XDS Dry Scroll Pump XDS35i, XDS35iE, XDS46i Models
Analytical instruments, scanning electron microscope-SEM, beam line and high-energy physics, turbine molecule front pump, coating, cryology, degassing/vulcanization oil, epoxy resin, distillation/extraction/filtration, freeze drying, furnace, gel drying, laboratory bench vacuum, laser, gas recovery and recycling, helium leak detector, load lock and transmission chamber, rare gas recycling, rare gas recycling, refrigeration manufacturing, R&D, Rotary centrifugal evaporator, SEM/FIB (ion beam repair), solvent recovery, surface science instruments
Product features:
*Bearing cover: It can ensure the separation of process gas and bearing lubricant to ensure a clean vacuum environment and prevent pollutants from the process gas from entering the lubricant, thereby extending the service life of the bearing.
*Frequency converter drive: pump performance is identical globally, with pump overload protection and remote start/stop function characteristics.
*High flow gas ballast characteristics: can achieve steam extraction (including water vapor) at a speed of up to 240 g/hr.
*Unique axial air gap motor: reduces overall pump size and reduces power and noise.
*Simple single ended double vortex design: can complete maintenance work in a few minutes, thereby reducing operating costs and extending normal operating time as much as possible.
*Dual inlet and bypass valve technology: XDS35iE is suitable for pumping large cavities, preventing excessive gas compression, improving pump efficiency and pumping speed, and extending the service life of bearings.
Edwards XDS Dry Scroll Pump XDS35i, XDS35iE, XDS46i Models
Edwards XDS Dry Scroll Pump XDS35i, XDS35iE, XDS46i Models
Edwards XDS Dry Scroll Pump XDS35i, XDS35iE, XDS46i Models
Edwards XDS Dry Scroll Pump XDS35i, XDS35iE, XDS46i Models
Ordering Information:
