Product Details
| surface | draw | color | RAL 7047 |
|---|---|---|---|
| velocity | 84 m³/h 50 Hz | Ultimate vacuum | 0.5 Pa |
| Noise level | 65 dB(A) | Motor power | 2.2kW |
| High brightness | Coating oil seal rotary vacuum pump, 50Hz rotary vane vacuum pump, oil seal rotary vane vacuum pump | ||
Product Description:
DRV60 84m3/h two-stage oil-sealed rotary vane vacuum pump
When the ambient temperature range is lower than 40°C and the inlet pressure is less than 1300Pa, long-term continuous operation is allowed. However, when the relative humidity of the pumped gas is above 90%, the gas ballast valve should be opened.
Features & Benefits:
* Non-spring rotary vane, low noise, low vibration and long service life.
* Built-in oil check valve to avoid oil return.
* Built-in forced fuel supply pump to ensure long-term continuous operation of the pump under atmospheric pressure.
* Air-cooled, oil-cooled, water-cooled and other cooling methods are adopted to ensure good cooling effect, so that the pump has a long-term stable rumble and stable agitation performance.
* The structure is reasonable, and it has the advantages of convenient assembly and disassembly, fast and convenient maintenance.
Technical data
| unit | DRV90 | ||
| Drawing speed | 50 Hz | cubic meters - 1 / Lmin-1 | 84/1400 |
| 60 Hz | 100/1667 | ||
| Ultimate vacuum | No gas ballast | Pa/mbar | 0.5/5×10-3 |
| With gas ballast | 4/4×10-2 | ||
| entrance | KF40 | ||
| outlet | KF40 | ||
| Oil demand | litre | 5.5 | |
| Noise level | Decibel (A) | 65 | |

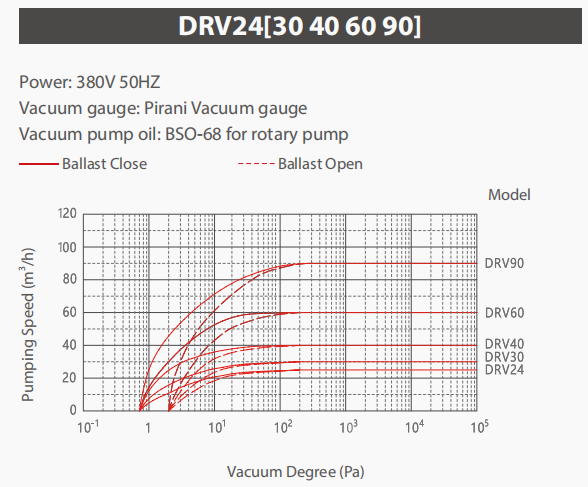

Performance Curve

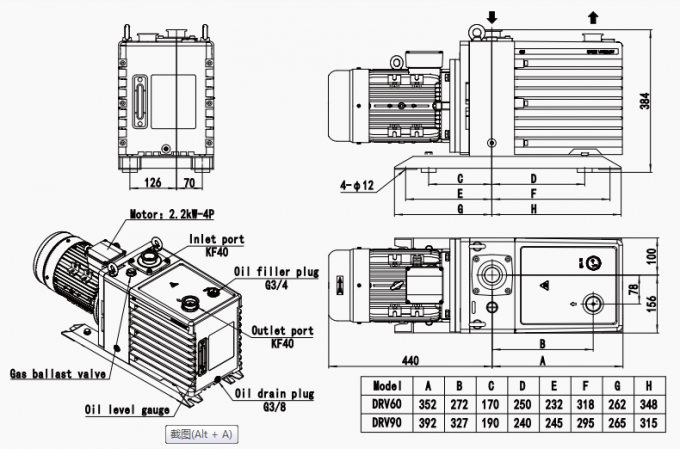

Dimensions
DRV60[90]
apply
Vacuum metallurgy
Thin film coating
freeze drying
