China Baosi BSC vacuum pump Two stage oil rotary vane pump DRV24 Pumping speed 22m3H

China Baosi BSC vacuum pump Two stage oil rotary vane pump DRV24 Product parameters

• Pumping speed:22m3/h

• Ultimate pressure:4Pa

• Motor power:750W

• Vacuum pump oil:BSO68

• Inlet:KF40/KF25

• Outlet:KF40


Baosi BSC vacuum pump Two stage oil rotary vane pump DRV24 Product Features

·No spring rotating disc, achieving low noise, low vibration, and long service life;

·Built in oil check valve to ensure no oil return in the pump;

·Built in oil pump for forced oil supply, achieving long-term continuous and stable operation of the pump below atmospheric pressure;

·The combination of various cooling methods such as air cooling, oil cooling, and water cooling ensures good cooling effect, achieving long-term stable operation of the product and stable evacuation performance;

·Reasonable product structure, easy disassembly and assembly, fast and convenient maintenance.

Baosi BSC vacuum pump Two stage oil rotary vane pump DRV24 Main performance indicators

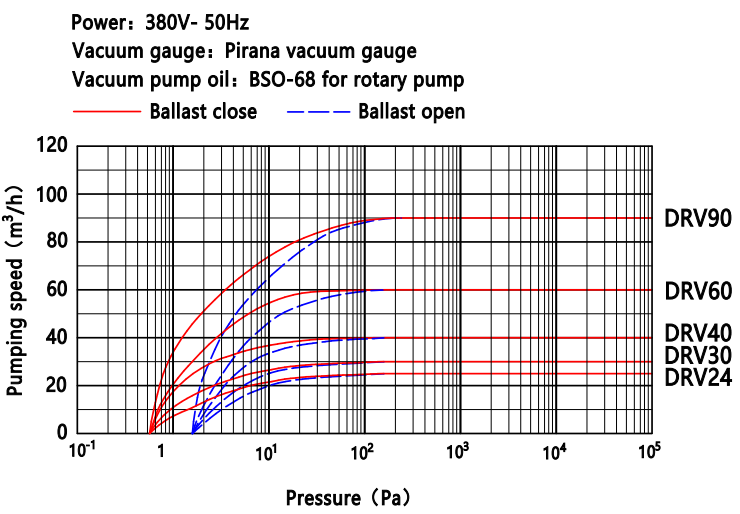

Baosi BSC vacuum pump Two stage oil rotary vane pump DRV24 Pumping curve
